Titanium Sheet and Plates

Afiq Sheets and Plates is a reputable supplier and manufacturer of Titanium Sheets and Plates in Kuala Lumpur, Malaysia. With a quality, precision, and reliability reputation, Afiq supplies high-performance titanium products to satisfy the demands of the aerospace, medical, marine, and industrial engineering industries. Afiq ensures that all materials are in accordance with international standards, supplying products that satisfy stringent technical and safety specifications. Their Titanium Sheets and Plates are offered in a range of grades and gauges, such as Titanium Grade 5, with exceptional strength, corrosion resistance, and performance for demanding applications.

Titanium Cold Rolled Plates

Titanium Hot Rolled Plates

Titanium Clad Sheets & Plate

Titanium Plates Manufacturer in West Kuala lumpur, Titanium Plates & Sheets Kuantan, Titanium Mirror Finish Plates Supplier in Kuala lumpur, Titanium Polished Plates Exporter in Kuala lumpur, Titanium Chequered Plates Price List in Malaysia, Titanium Cold Rolled Plate Distributor in Kuantan, Titanium Clad Plates and Sheets Supplier in West Kuala lumpur, Titanium Sheet and Plate Distributor in Malaysia, Titanium Perforated Plate Sizes in mm

Titanium Sheets and Plates, especially Grade 5 (Ti-6Al-4V), consist of around 90% titanium, 6% aluminum, and 4% vanadium. This alloy has high strength, low weight, and excellent corrosion resistance. The material has a tensile strength of about 950 MPa and a density of 4.43 g/cm³. It is stable up to 400°C at high temperatures and is weldable and heat treatable. Such mechanical and chemical properties make Titanium Sheets and Plates extremely ideal for use in applications where resistance to harsh environments, strength, and performance are a requirement.

Titanium Sheet and Plates Specification

ASTM Specification	ASTM A240 / ASME SA240
Standard	MSRR, AMS, BS, ASTM A240 / ASME SA240
Length & Sizes	1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, 4′ x 8′, Cut to size available
Thickness	0.1mm to 100 mm Thk
Width	10-2500mm
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Temper	Annealed
Condition	Polished on both sides
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Stock in form of	Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate
Value Added Service	Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Test Report	Raw Materials Certificate EN 10204/3.1B 100% Radiography Test Report High special strength, high melt point Third Party Inspection Report, etc Excellent corrosive resistance, good thermal resistance Customer support after-sales service Strict Control from Raw Material to Finished
Profiling	To provide a full profiling service we use numerous profiling methods including: Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting
Specialized in	material under 3/16 ” [5.00 mm] in thickness and 24″ [600 mm] and over in width material 3/16″ [5.00 mm] and over in thickness and over 10″ [250 mm] in width cold-rolled material under 3/16″ [5.00 mm] in thickness and under 24″ [600 mm] in width Free Quote, Inquiry answered within 24 hours
We offer a comprehensive services designed to add value to your project: plasma cutting, waterjet cutting, laser cutting, bending and mechanical processing, edge preparation, welding, sawing and shearing.

Titanium Sheet and Plates Chemical Composition

Grade	Ti	C	Fe	H	N	O	Al	V
Ti Grade2	99.2 min	0.1 max	0.3 max	0.015 max	0.03 max	0.25 max	–	–
Ti Grade5	90 min	–	0.25 max	–	–	0.2 max	6 min	4 min

Titanium Sheet and Plates Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Titanium Gr. 2	4.5 g/cm3	1665 °C (3030 °F)	Psi – 49900 , MPa – 344	Psi – 39900 , MPa – 275	20 %
Titanium Gr. 5	4.43 g/cm3	1632 °C (2970 °F)	Psi – 138000 , MPa – 950	Psi – 128000 , MPa – 880	14 %

Titanium Sheets Price in Ipoh, Titanium Hot Rolled Plates Weight Chart, Titanium Sheet and Plates Supplier in Malaysia, Stockist of Titanium Cold Rolled Sheets in Kuala lumpur, Titanium Perforated Sheet Supplier in Malaysia, Titanium Perforated Plates Price List in Kuala lumpur, Titanium Perforated Plates Supplier in Kuala lumpur, Titanium Chequered Plates Exporter in West Kuala lumpur, Titanium Polished Plates Exporter in Malaysia, Titanium Perforated Plates Exporter in Kuantan, Titanium Sheet and Plate in Ipoh

Titanium Sheet and Plates Sizes

6Al-4V TITANIUM SHEET SIZES
Thickness (in)	Size (in)	Appx. Weight Per Sheet (lbs)
.016	36 x 96	8.8
.020	36 x 96	11.0
.025	36 x 96	13.8
.032	36 x 96	17.7
.040	36 x 96	22.1
.050	36 x 96	27.7
.063	36 x 96	34.9
.071	36 x 96	39.3
.080	36 x 96	44.2
.090	36 x 96	49.8
.100	36 x 96	55.3
.125	36 x 96	69.1
.160	36 x 96	88.5
.187	36 x 96	103.4

CP GRADE 2 TITANIUM SHEET
Thickness (in)	Size (in)	Appx. Weight Per Sheet (lbs)
.020	48 x 120	18.8
.028	48 x 120	26.3
.035	48 x 120	32.9
.040	48 x 120	37.6
.050	48 x 120	46.9
.063	48 x 120	59.1
.078	48 x 120	73.2
.093	48 x 120	87.3
.125	48 x 120	117.4

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Contact Now

Largest Titanium Sheet and Plates Manufacturer and Exporter in Kuala lumpur, Malaysia

Afiq Sheets and Plates based in Kuala lumpur, Malaysia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Titanium Clad Sheets Distributor in Malaysia, Titanium Perforated Plates Supplier in Kuala lumpur, Titanium Perforated Sheet Weight Chart, Titanium Plate Exporter in Kuala lumpur, Titanium Polished Sheets Manufacturer in West Kuala lumpur, Titanium Shim Sheet and Plate Price List in Malaysia, Titanium Chequered Plates Sizes in mm, Titanium Hot Rolled Plate Distributor in Kuantan, Titanium Sheets and Plates Ipoh

Titanium Plates and Sheets find wide application in industries that require strength, lightness, and resistance to corrosion. In aviation, they find usage in fuselage skins, engine parts, and structural components because of their high strength-to-weight ratio. In medicine, they are used in surgical equipment, implant devices, and orthopedic plates. The titanium plates are used in marine industries for pressure vessels, ship parts, and seawater-exposed heat exchangers. They are further utilized in chemical processing facilities, energy production, and automotive sectors where performance of the material under harsh conditions is important for safety and efficiency.

Types of Titanium Sheet and Plates

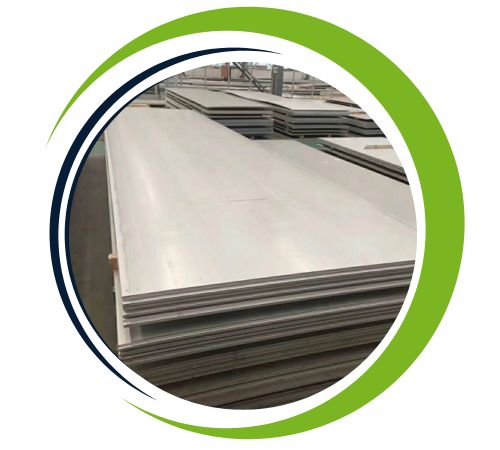

Titanium Hot Rolled Sheets

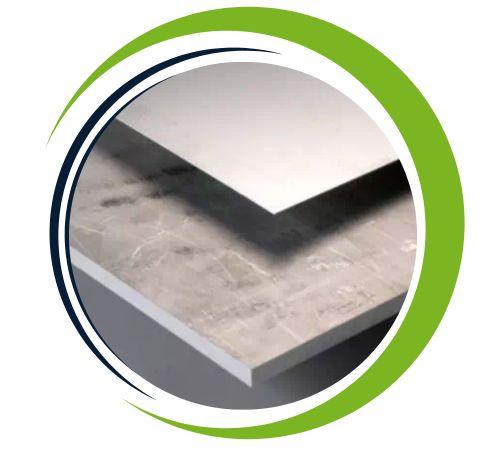

Titanium Clad Plates

Titanium Perforated Plate

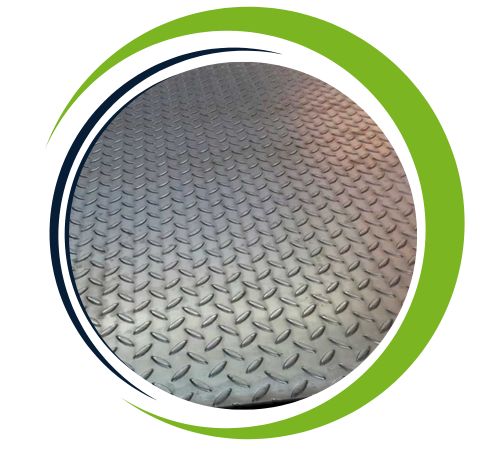

Titanium Chequered Sheet

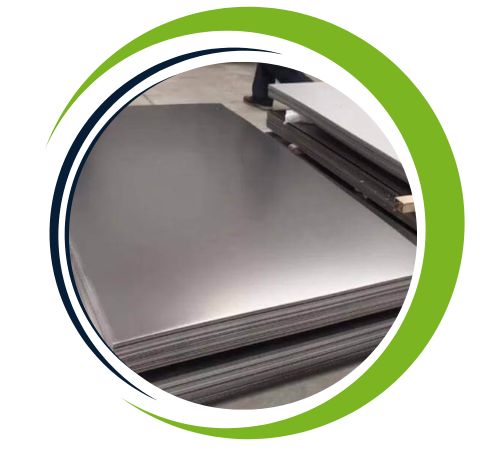

Titanium Polished Sheet

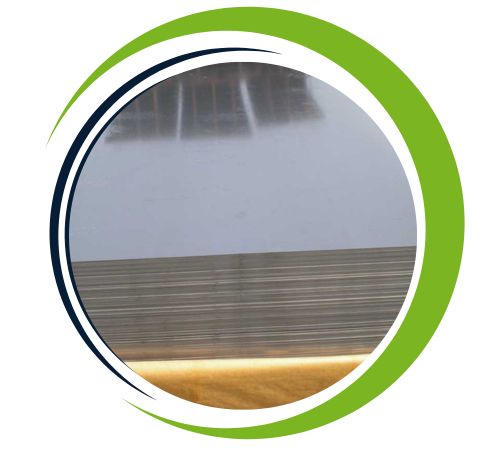

Titanium Cold Rolled Sheets

Titanium Sheets Dealer in West Kuala lumpur, Titanium Plates Supplier in West Kuala lumpur, Titanium Sheet and Plates in Kuantan, Titanium Plates Size Chart, Titanium Sheets Price in Ipoh, Titanium Plates Supplier in Malaysia, Titanium Sheet and Plates Stockist in Kuala lumpur, Titanium Sheets and Plates Exporter in Malaysia, Titanium Sheet and Plates Stockist in Kuala lumpur, Titanium Plates Supplier in Kuala lumpur

Are Custom Sizes Available for Titanium Sheet and Plates?

Yes, we offer custom sizes for Titanium Sheet and Plates to meet specific project needs. Our team at Afiq Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@afiqsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Titanium Sheet and Plates Weight Chart

Thickness	Plate Weight per Unit Area	Density
3/16 inches	0.06000 lbs/in²42.184176 kg/m²	0.315 lbs/in³8.72 g/cm³
1/4 inches	0.08 lbs/in²56.245568 kg/m²	0.315 lbs/in³8.72 g/cm³
3/8 inches	0.121 lbs/in²85.0714216 kg/m²	0.315 lbs/in³8.72 g/cm³
1/2 inches	0.161 lbs/in²113.1942056 kg/m²	0.315 lbs/in³8.72 g/cm³
5/8 inches	0.196 lbs/in²137.8016416 kg/m²	0.315 lbs/in³8.72 g/cm³
3/4 inches	0.235 lbs/in²165.221356 kg/m²	0.315 lbs/in³8.72 g/cm³
7/8 inches	0.274 lbs/in²192.6410704 kg/m²	0.315 lbs/in³8.72 g/cm³
1 inches	0.313 lbs/in²220.0607848 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/4 inches	0.391 lbs/in²274.9002136 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/2 inches	0.47 lbs/in²330.442712 kg/m²	0.315 lbs/in³8.72 g/cm³
1 3/4 inches	0.549 lbs/in²385.9852104 kg/m²	0.315 lbs/in³8.72 g/cm³
2 inches	0.627 lbs/in²440.8246392 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/4 inches	0.705 lbs/in²495.664068 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/2 inches	0.784 lbs/in²551.2065664 kg/m²	0.315 lbs/in³8.72 g/cm³
2 3/4 inches	0.862 lbs/in²606.0459952 kg/m²	0.315 lbs/in³8.72 g/cm³
3 inches	0.941 lbs/in²661.5884936 kg/m²	0.315 lbs/in³8.72 g/cm³

Application Industry of Titanium Sheet and Plates

Titanium sheets and plates are widely used in aerospace, military, and medical industries due to their exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility. In aerospace, they are used in structural components, engine parts, and fasteners. The medical field utilizes titanium plates for implants, prosthetics, and surgical instruments. Additionally, titanium sheets and plates are employed in chemical processing, marine, and power generation industries for their ability to withstand extreme environments. Their versatility and durability make them ideal for high-performance and reliable applications.
